3" CA76MM Goyen Type MM Series Manifold Mount Pulse Jet Valve

Name: 3quot CA76MM Goyen Type MM Series Manifold Mount Pulse Jet Valve
Brand: BRANDO
Price: 1 USD

Wholesale 3" CA76MM Goyen Type MM Series Manifold Mount Pulse Jet Valve from china suppliers

Brand Name : BRANDO

Model Number : CA76MM

Certification : CE

Place of Origin : CHINA

MOQ : 1 PC

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 100000 pieces per month

Delivery Time : 4-7 days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 3''

Valve Series : MM

Valve Structure : Manifold Mount

Diaphragm Material : NBR, FKM

Working Pressure Range : 0.35 To 0.85 MPa

Coil Voltage : 220VAC, 110VAC, 24VAC, 24VAC

Body Material : Aluminum (Diecast)

Application : Dust Collector

Contact Now

CA76MM Goyen Type MM Series Manifold Mount Pulse Jet Valve

Products Description

CA76MM type submerged pulse jet diaphragm valve for dust collector
  CA76MM / CA76MM010-300 / CA76MM010-305 /CA76MM000-301 type 3inch submerged pulse jet diaphragm valve for dust collector, normal is G thread, NPT thead is also available. Diaphragm can be NBR or VITON.
CA /RCA-MM series submerged pulse jet valves, It can be mounted directly on the air manifold.
  It is 2-way dust collector valve used for pulsing large volumes of air into filter bags for particulate removal.
CA Series is solenoid control pulse jet valves, RCA series is air control pulse jet valves, & we have two types right angle thread type & submerged type, with different connection from 15mm~76mm, 1/2" ~3".
Suitable for :
  Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters,
  envelope filters, ceramic filters, and sintered metal fibre filters.
We produce series pulse jet valve: CA20T , CA25T , CA35T , CA45T , CA50T , CA62T , CA76T , CA25DD , CA45DD ,CA25FS, CA45FS , CA40MM, CA50MM, CA62MM, CA76MM, CA89MM
  RCA20T , RCA25T , RCA35T , RCA45T , RCA50T , RCA62T , RCA76T , RCA25DD , RCA45DD , RCA25FS, RCA45FS , RCA40MM ,RCA50MM, RCA62MM, RCA76MM, RCA89MM

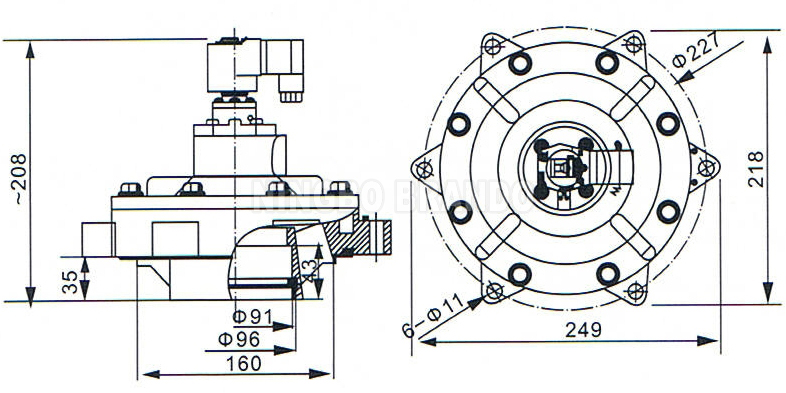

Main Dimension

3" CA76MM Goyen Type MM Series Manifold Mount Pulse Jet Valve

CA76MM

Technical Data

Model No		CA25MM	CA40MM	CA50MM	CA62MM	CA76MM	CA102MM
Orifice Size		25	40	50	62	76	102
Port Size		1''	1 1/2''	2''	2 1/2''	3''	3 1/2''	4''
Body Material		Aluminum (diecast)
Diaphragm Material		NBR, FKM
Pressure Range		5 to 125 psi
Temp. Range	NBR	-40 to 82 ℃
	FKM	-29 to 232 ℃
Voltage		24VDC, 24VAC, 110VAC, 220VAC

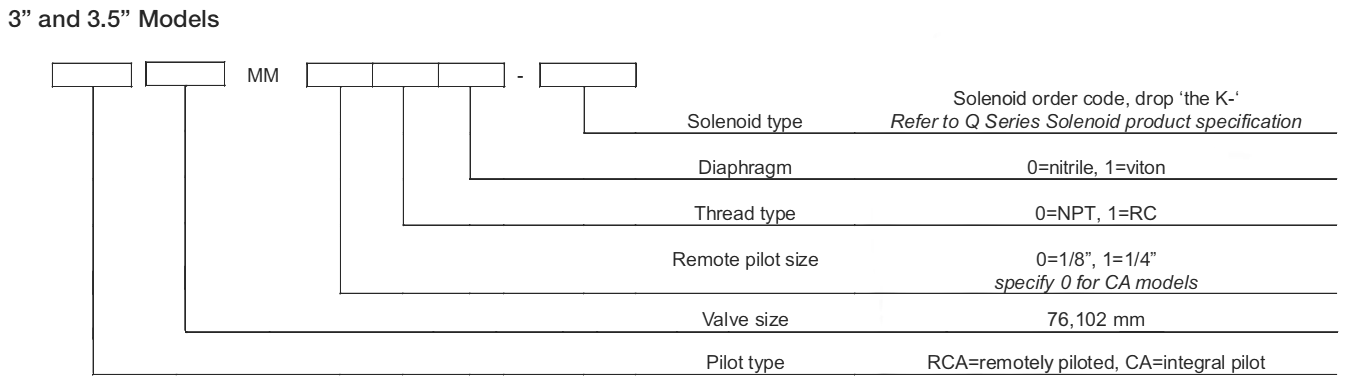

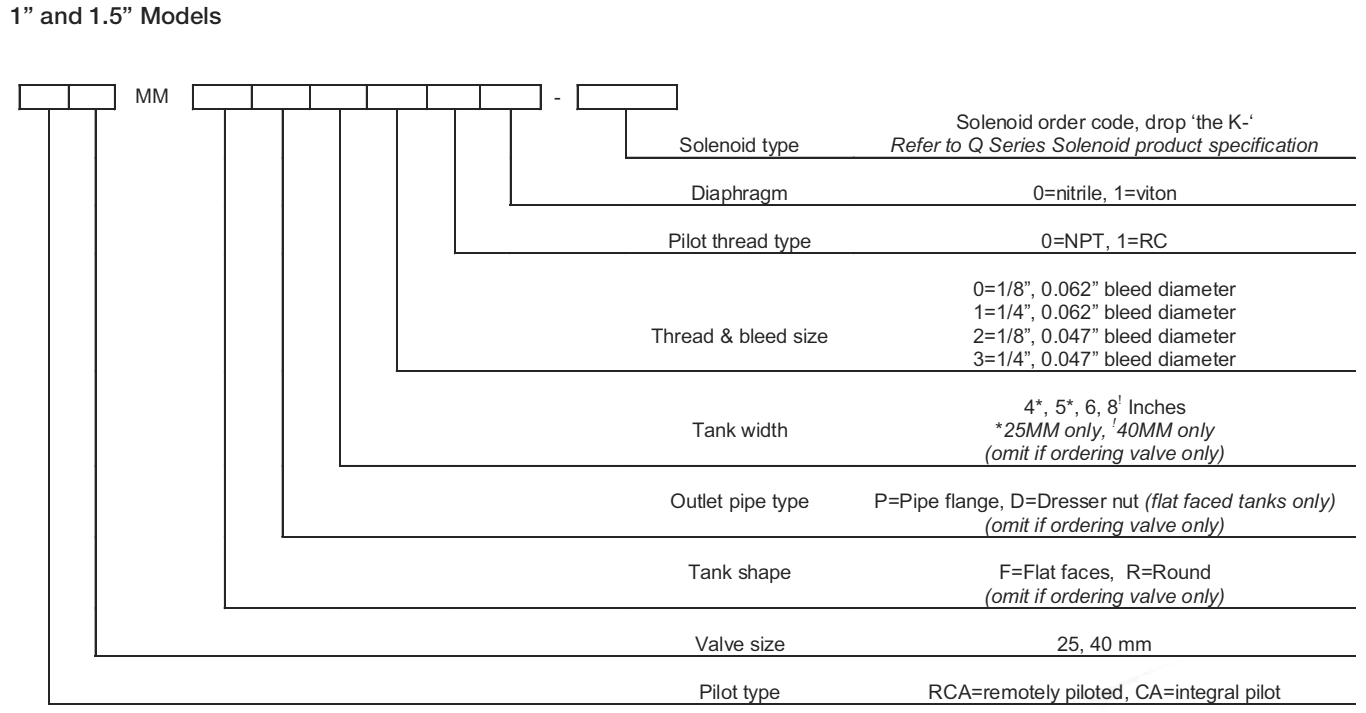

Ordering Code

Pulse Valve Series

Our Production

More Goyen Type Pulse Valves for you to choose:


T Series	DD Series	FS Series	MM Series

RCA Series	Solenoid Coil	Solenoid Armature	Diaphragm

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
